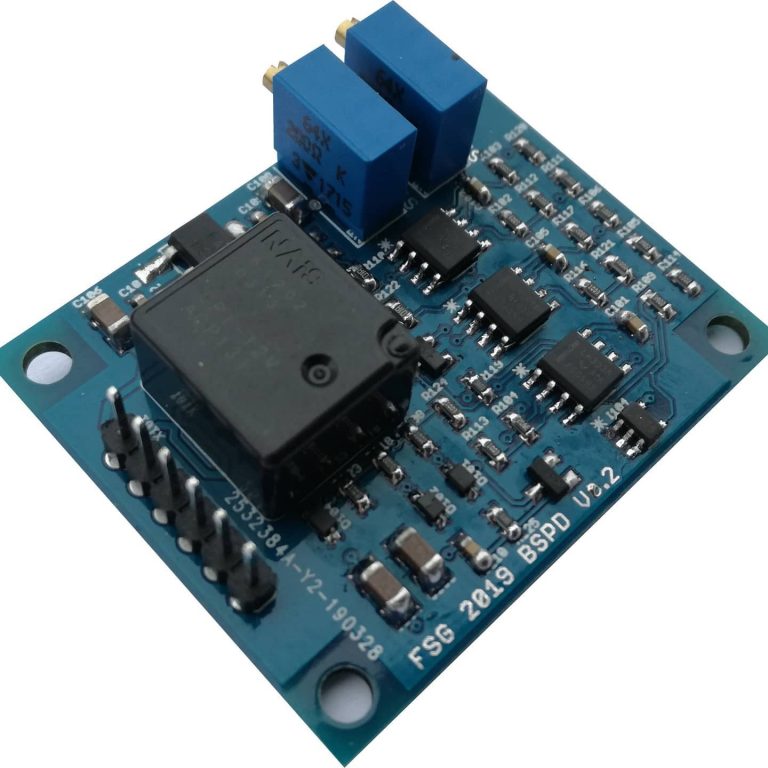

BSPD
FSG FSUK FBharat 2025
150 EUR
THIS ITEM IS COMPATIBLE TO THE FOLLOWING RULES
- FSG/FSUK/FBharat 2025 (IC&EV)
Features:
Autoreset after 10s and SCS on loss of signal (for details see datashet BSPD_2019.pfd in the Gdrive folder)
This is v0.3 version (altough in PCB there is written V0.2)
INCLUDED WITH HOUSING CONNECTOR AND PIN TO CRIMP!
Normal shipment is free and takes 15-25 days depending of the place of the globe you are located. We ship from Italy.

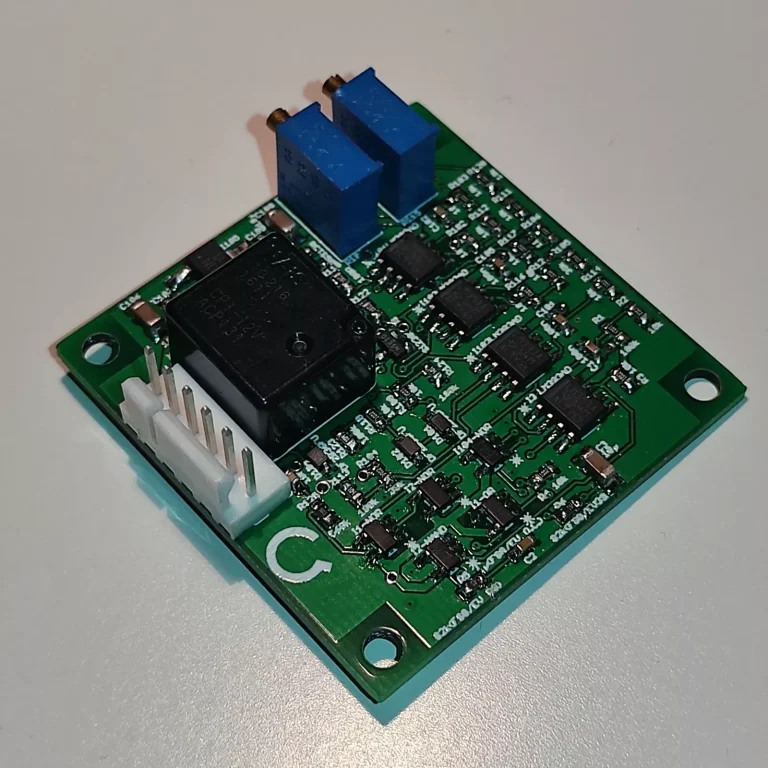

BSPD FSAE ICE 2025
150 EUR
THIS ITEM IS COMPATIBLE TO RULES OF
- FSAE 2025 (ICE ONLY, 1000ms delay for plausibility condition and 100ms delay for loss of signals, no auto-reset*)
* as stated by FSAE rules (IC4.8.5) auto reset is forbidden.
INCLUDED WITH HOUSING CONNECTOR AND PIN TO CRIMP!
This is v0.5 version
This version is made in purpose to have a PCB circuit routing compatible to all the rules.

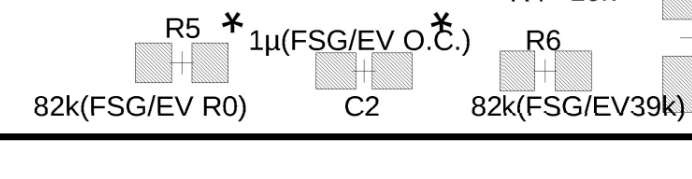

The compatibility is managed via setting properly values of R5, R6 and C2.
[FSAE IC] 2025 values:
R5= 82 kOhm --> (100 ms delay for loss of signal)
C2= 1 uF --> (100 ms delay for loss of signal)
R6= 82 kOhm --> (1000 ms delay to avoid false trips)
Normal shipment is free and takes 15-25 days depending of the place of the globe you are located. We ship from Italy.
BSPD FSAE EV 2025
150 EUR
THIS ITEM IS COMPATIBLE TO RULES OF
- FSAE 2025 (EV ONLY, 500ms delay for plausibility condition, no delay for loss of signal*, no auto-reset**)
* EV.7.7.3
** as stated by FSAE EV 2025 rules auto-reset is not defined
INCLUDED WITH HOUSING CONNECTOR AND PIN TO CRIMP!
This is v0.5 version
This version is made in purpose to have a PCB circuit routing compatible to all the rules.
The compatibility is managed via setting properly values of R5, R6 and C2.
[FSG IC&EV]* or [FSAE EV] 2025 values:
R5= 0 Ohm (short circuit) --> (no delay for loss of signal)
C2= No component (open circuit) --> (no delay for loss of signal)
R6= 39 kOhm --> (500 ms delay to avoid false trips)
*THIS ITEM is also compatible to FSG rules for all the powertrain types but autoreset is not present.
Normal shipment is free and takes 15-25 days depending of the place of the globe you are located. We ship from Italy.
